Sliding Doors

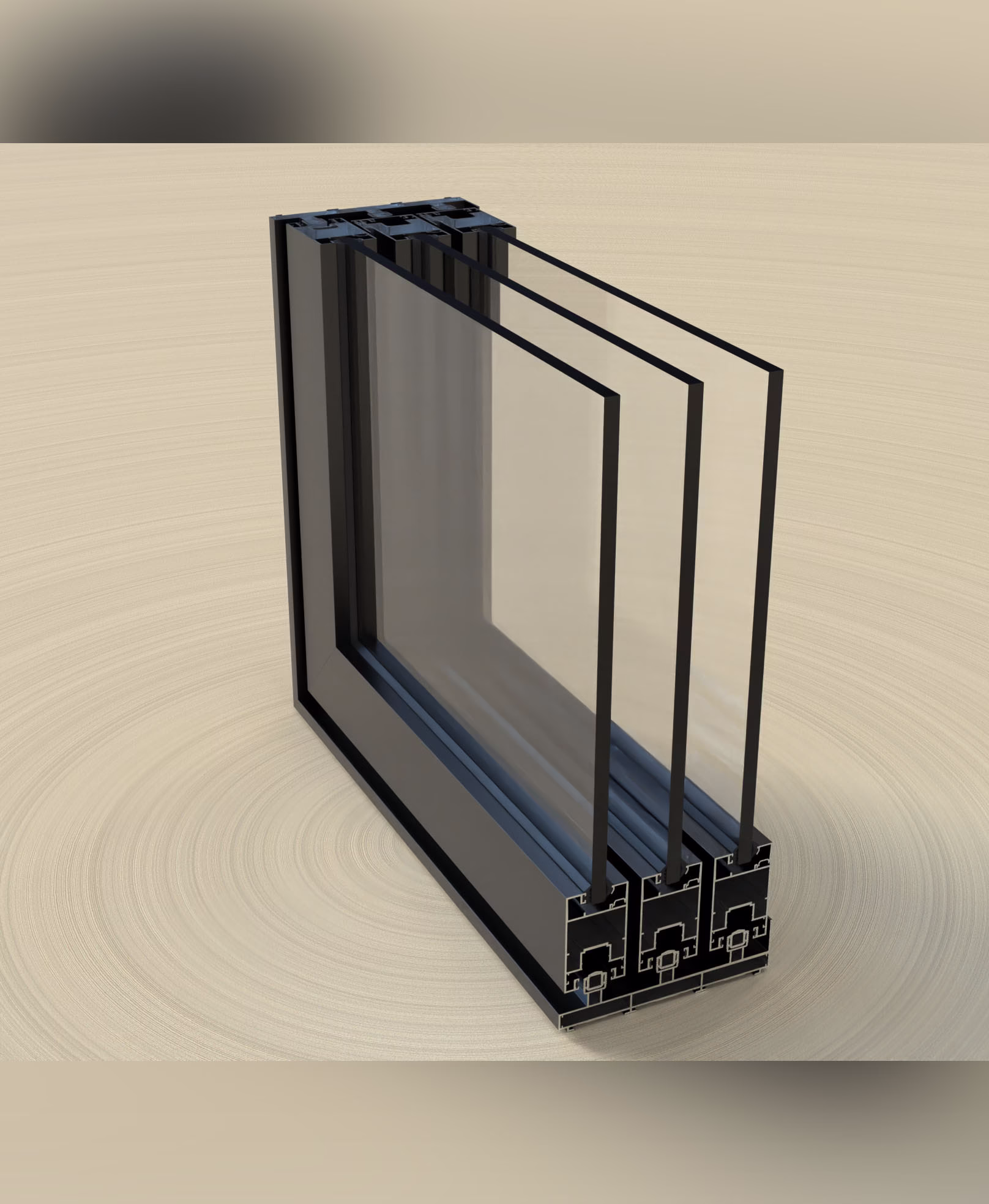

Sliding Door QDP-SD52
- Non thermal-break system
- The depth of aluminum outer frame: 125mm (4-19/21'' ) for 2 tracks and 188mm (7-2/5'' ) for 3 tracks, the depth of aluminum door & window sash: 52mm (2-1/21'' ), the thickness of aluminum frame: 1.5mm (1/17'') to 1.8mm (1/14'' )
- Aluminum Alloy 6063-T5
- Single or Multi-point locking system including handle, stainless steel roller slider for loads from 80 up to 200kg
- Powder coating (non metallic or metallic) or Anodise ED
- Monolithic glass, Laminated glass, Insulating Glass, Laminated Insulating glass with the thickness 6mm (5/21'') to 33.52mm (1-5/16'')
- EPDM or PU (Polyurethane)
Fasteners
'±1440 Pa (minimum pressure)
Not exceed 1.5 L/m2.s at pressure ±75 Pa
- No water leakage at minimum pressure +220 Pa
±2160 Pa (minimum pressure)
- Minimum STC 28 (depend on the glass configuration and thickness)
Hotels, the luxury/ high-end apartments, Villas, Resorts,…
Slim Sliding Door QDP-AUSLIM
- Thermal-break system with polyamide strip 12mm (9/19'')
- The width of aluminum door sash: 35.6 (1-2/5''), the thickness of aluminum frame: 1.5mm (1/17'' ) to 2.5mm (1/10'' )
- Aluminum Alloy 6063-T5
- Single or Multi-point locking system including handle, stainless steel roller slider for loads from 150kg up to 300kg
- Powder coating (non metallic or metallic) or Anodise ED
- Insulating Glass with thickness 24mm (19/20'' ) to 30mm (1-3/16'' ).
- Insulating Laminated Glass with maximum thickness 29.52mm (1'-3/19'').
- EPDM or PU (Polyurethane)
- Stainless Steel A2-70 & A4-70
- Uvalue up to 2.5 W/m2.oK with Uvalue of glass 0.9 W/m2.oK
±1440 Pa
- Not exceed 1.5 L/m2.s at pressure ±75 Pa
- No water leakage at minimum pressure +220 Pa
±2160 Pa
- Minimum STC 30 (depend on the glass configuration and thickness)
Hotel, the luxury/ high-end apartment <40m height, Villa, Resort,…

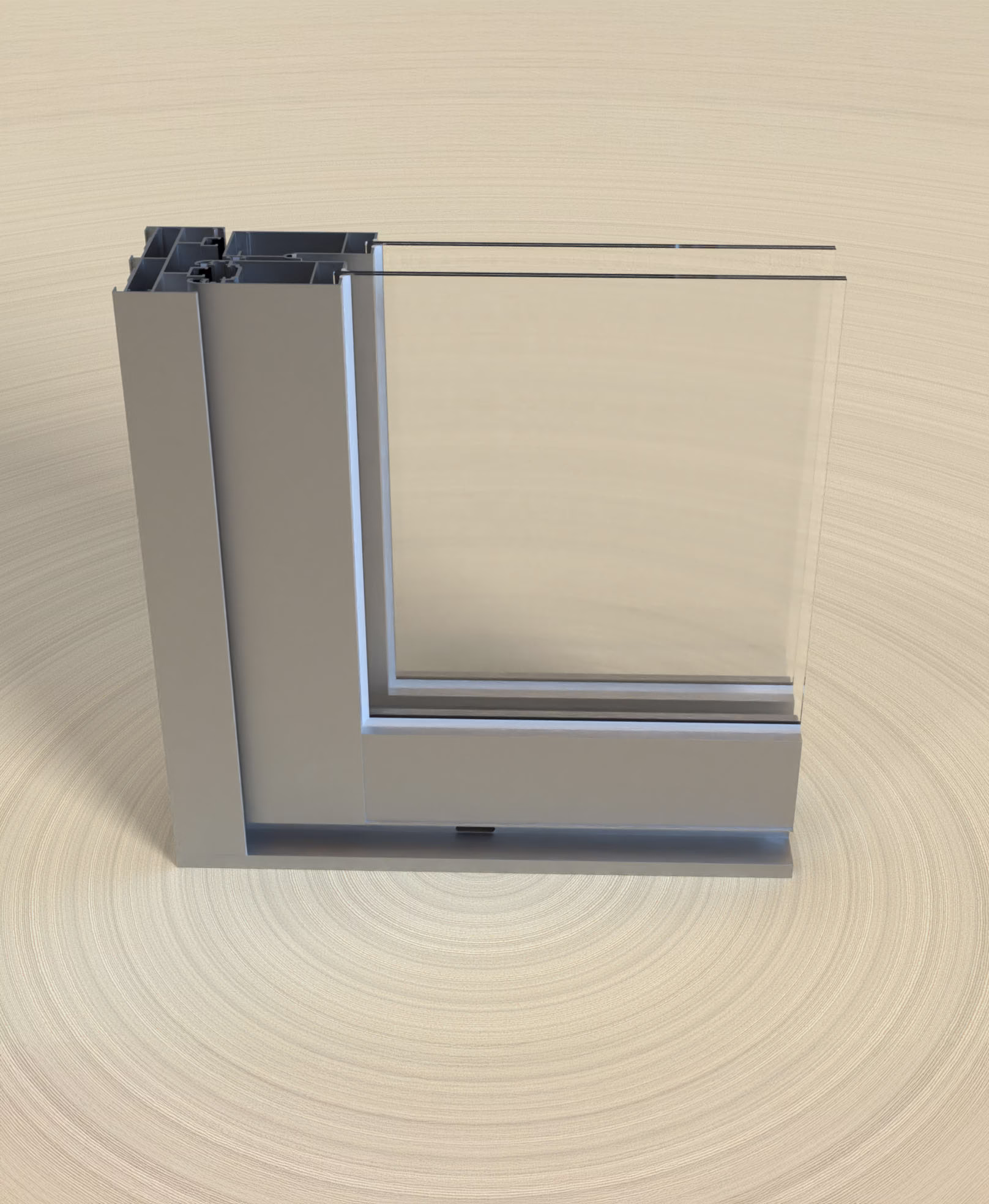

Sliding Door & Window QDP-QD96
- Non thermal-break system
- The depth of aluminum outer frame: 101.6mm (4') for 2 tracks and 148.3mm (5-18/21'') for 3 tracks, the typical depth of aluminum door & window sash: 32mm (1-1/4''), the thickness of aluminum frame: 1.5mm (1/17'') to 1.8mm (1/14'').
- Aluminum Alloy 6063-T5
- Single or Multi-point locking system including handle, stainless steel roller slider for loads from 60kg up to 150kg
- Powder coating (non metallic or metallic)
- Monolithic glass, Laminated glass or Insulating Glass with the thickness 6mm (5/21'') to 24mm (19/20'' )
- EPDM or PU (Polyurethane)
- Stainless Steel A2-70 & A4-70
±1440 Pa
- Not exceed 1.5 L/m2.s at pressure ±75 Pa
- No water leakage at minimum pressure +220 Pa
±2160 Pa
- Minimum STC 28 (depend on the glass configuration and thickness)
Hotels, the luxury/ high-end apartments, Villas, Resorts,…
