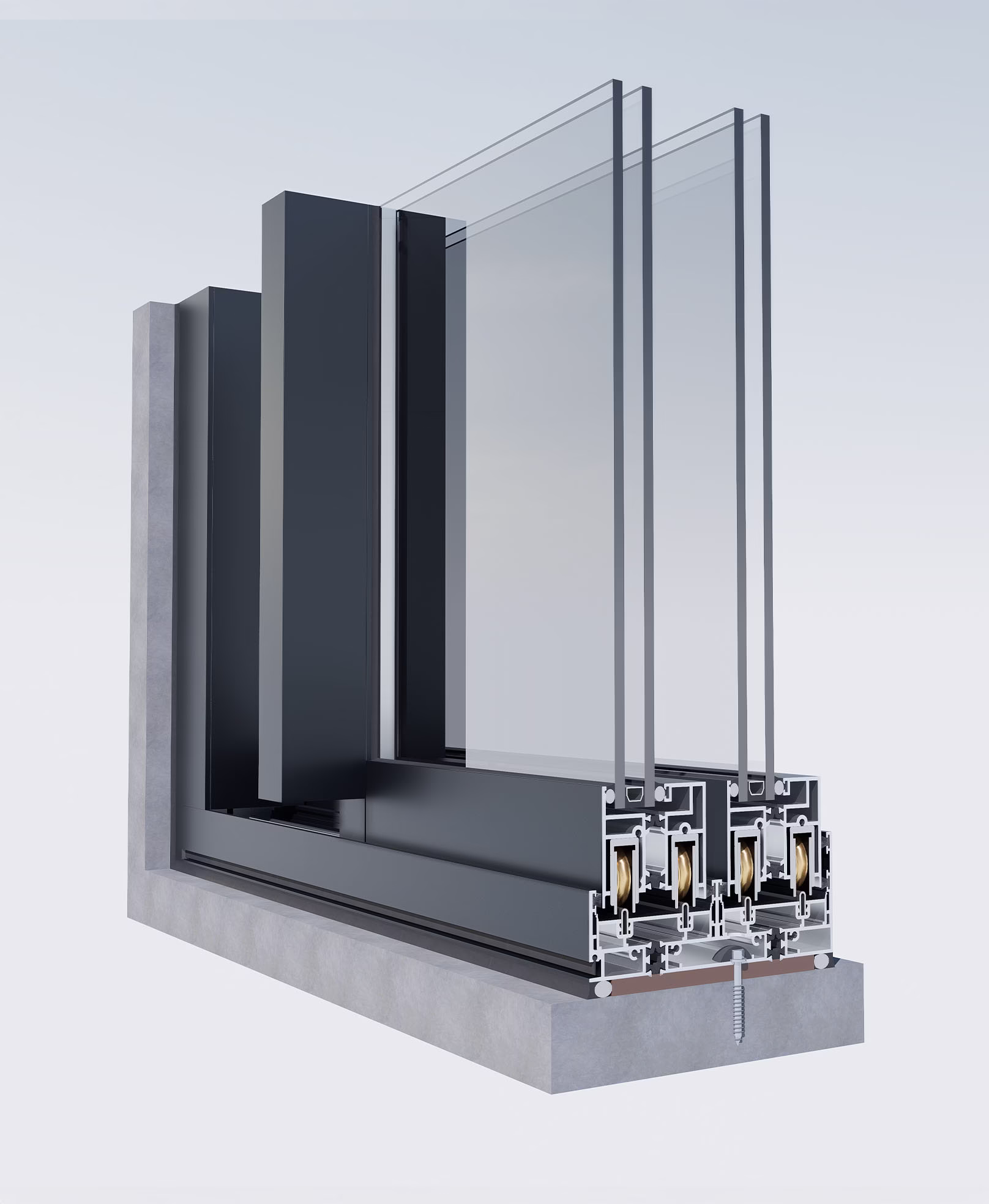

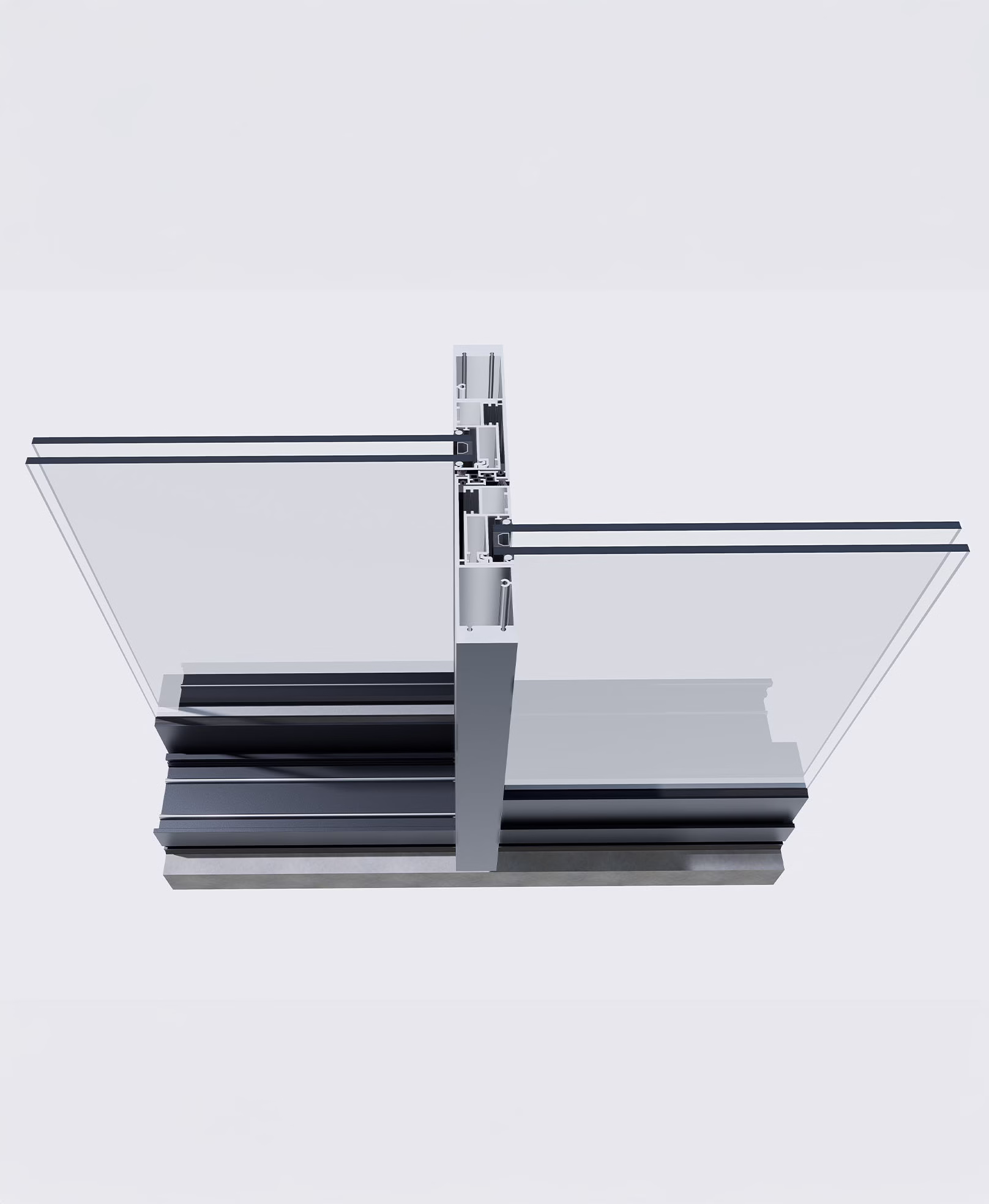

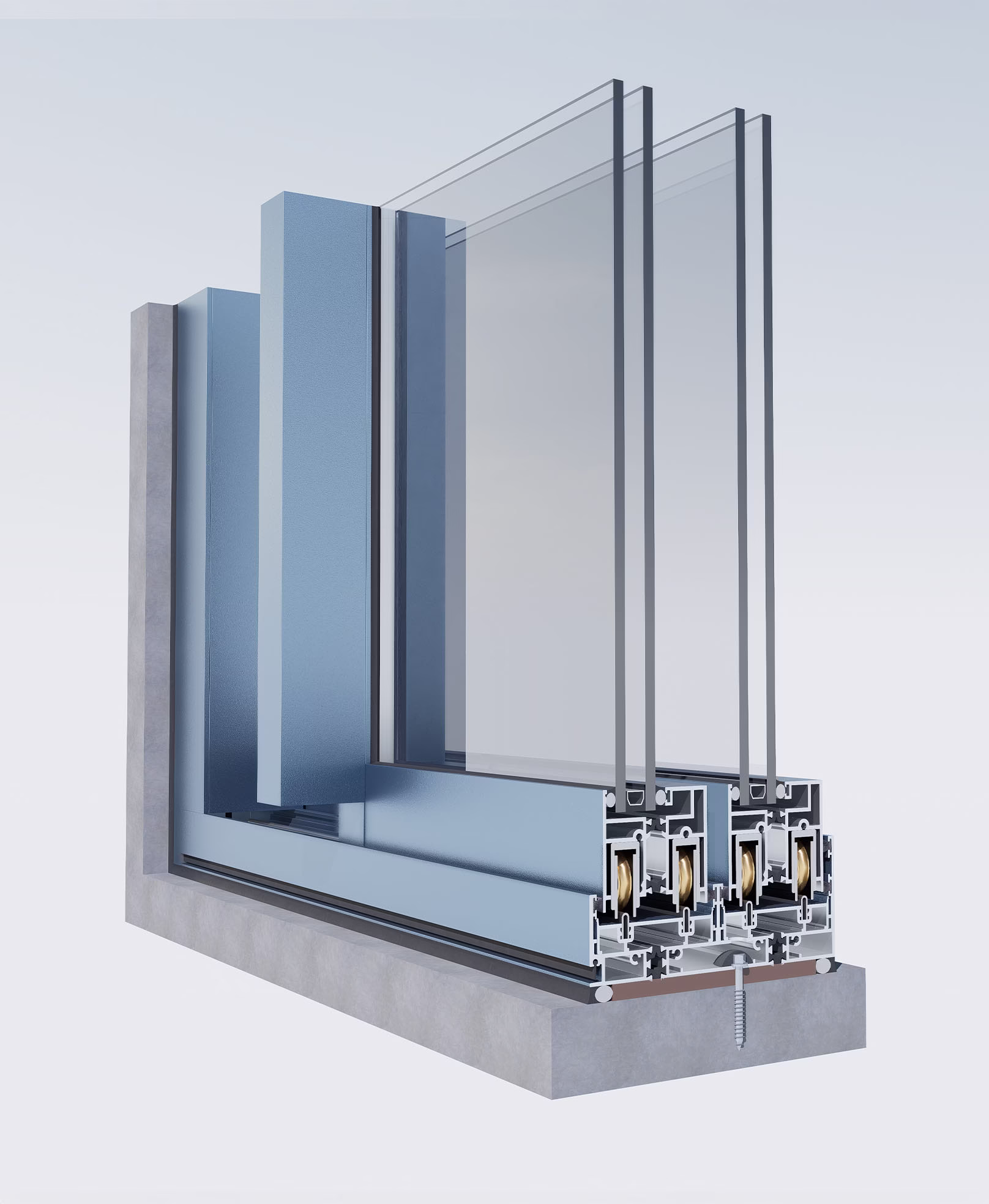

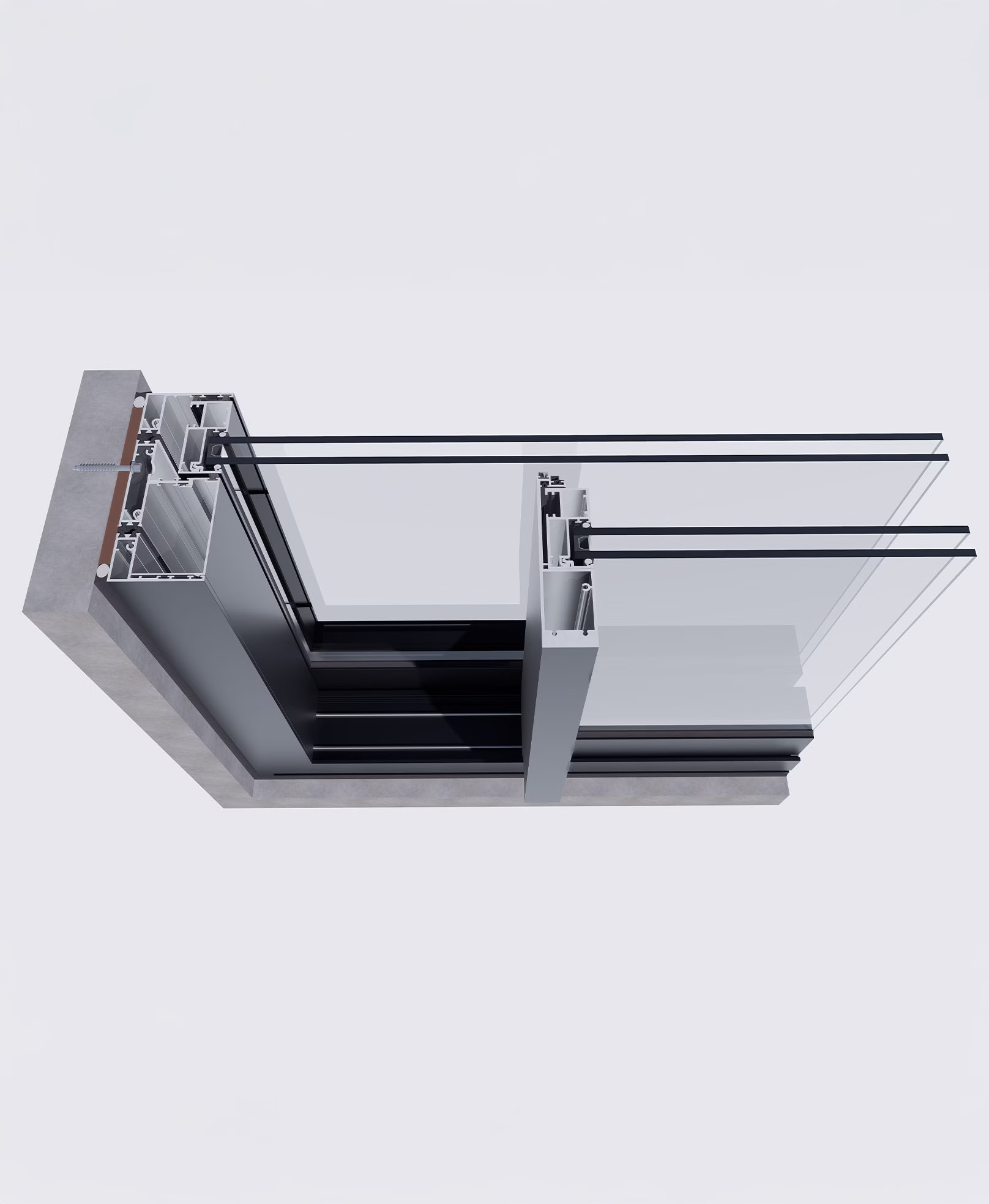

Slim Sliding Door QDP-AUSLIM
| Name (product code) | Slim Sliding Door QDP-AUSLIM | |
| Materials/ Components: | ||
| Aluminum frame | – Thermal-break system with polyamide strip 12mm (9/19”) – The width of aluminum door sash: 35.6 (1-2/5”), the thickness of aluminum frame: 1.5mm (1/17” ) to 2.5mm (1/10” ) – Aluminum Alloy 6063-T5 | ASTM B221 hoặc JIS H4100, AS/NZS 1664.1, AS/NZS 1866 |
| Hardwares/ Accessories | – Single or Multi-point locking system including handle, stainless steel roller slider for loads from 150kg up to 300kg | BS EN, ASTM Standard |
| Aluminum finish | – Powder coating (non metallic or metallic) or Anodise ED | AAMA 2604, AAMA 2605, AAMA 612 or JIS H8602 |
| Glazing | – Insulating Glass with thickness 24mm (19/20” ) to 30mm (1-3/16” ). – Insulating Laminated Glass with maximum thickness 29.52mm (1′-3/19”). | AS/NZS, ASTM, ANSI, GANA standards |
| Gasket | – EPDM or PU (Polyurethane) | ASTM Standard |
| Fasteners | – Stainless Steel A2-70 & A4-70 | EN ISO 3506 |
| Performance data: | ||
| Thermal performance | – Uvalue up to 2.5 W/m2.oK with Uvalue of glass 0.9 W/m2.oK | NFRC, ASHRAE Standard |
| Structural performance serviceability limit state (Class CW) | ±1440 Pa | AAMA/WDMA/CSA 101/IS2/A440-08 |
| Air infiltration (Class CW) | – Not exceed 1.5 L/m2.s at pressure ±75 Pa | AAMA/WDMA/CSA 101/IS2/A440-08 |
| Static water penetration (Class CW) | – No water leakage at minimum pressure +220 Pa | AAMA/WDMA/CSA 101/IS2/A440-084 |
| Strength test at ultimate limit state (Class CW) | ±2160 Pa | AAMA/WDMA/CSA 101/IS2/A440-08 |
| Sound proofing | – Minimum STC 30 (depend on the glass configuration and thickness) | ASTM E90 |
| Applications: | Hotel, the luxury/ high-end apartment <40m height, Villa, Resort,… | |
