Sliding Door & Window QDP-QD96
| Name (product code) | Sliding Door & Window QDP-QD96 | |
| Materials/ Components: | ||

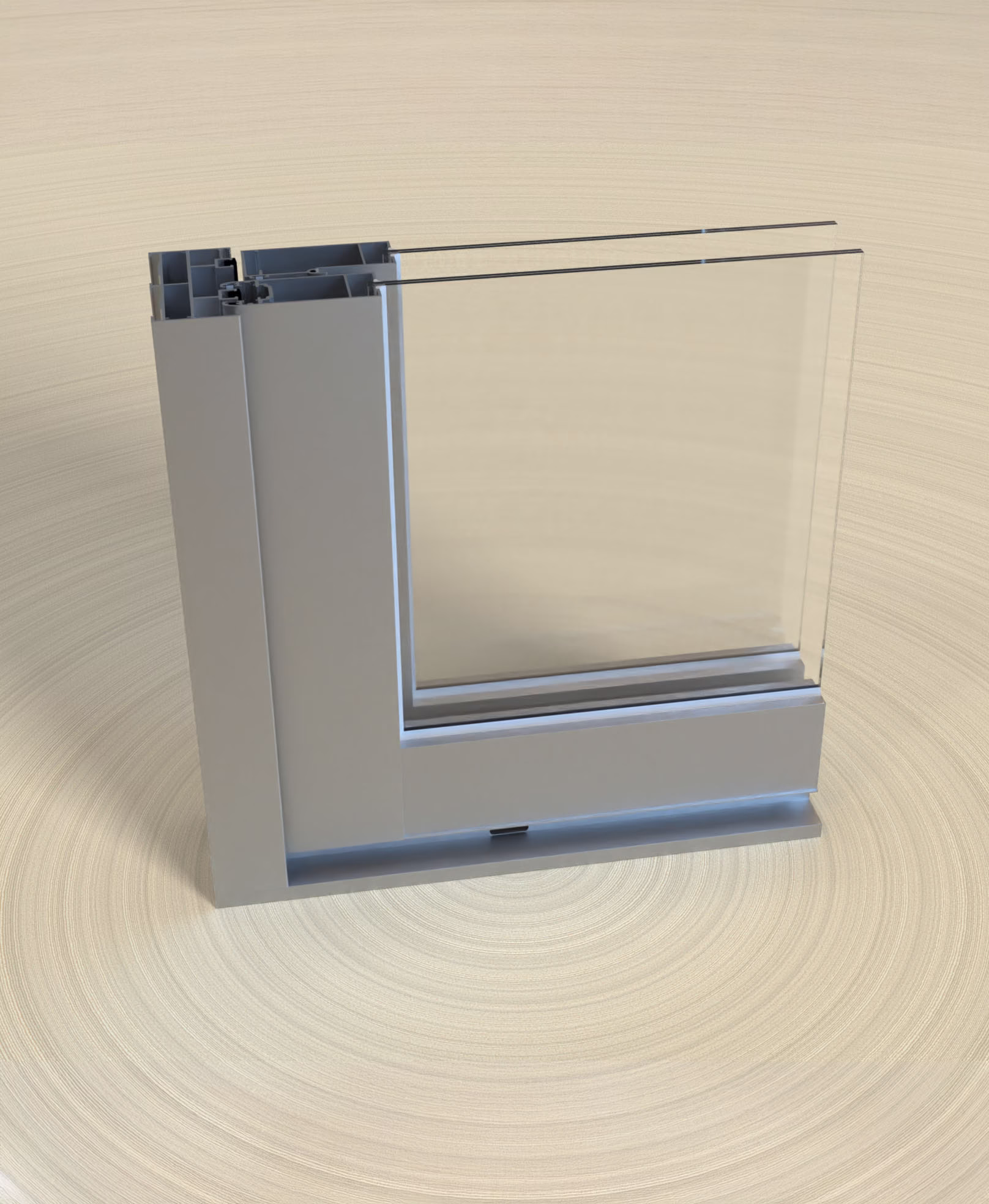

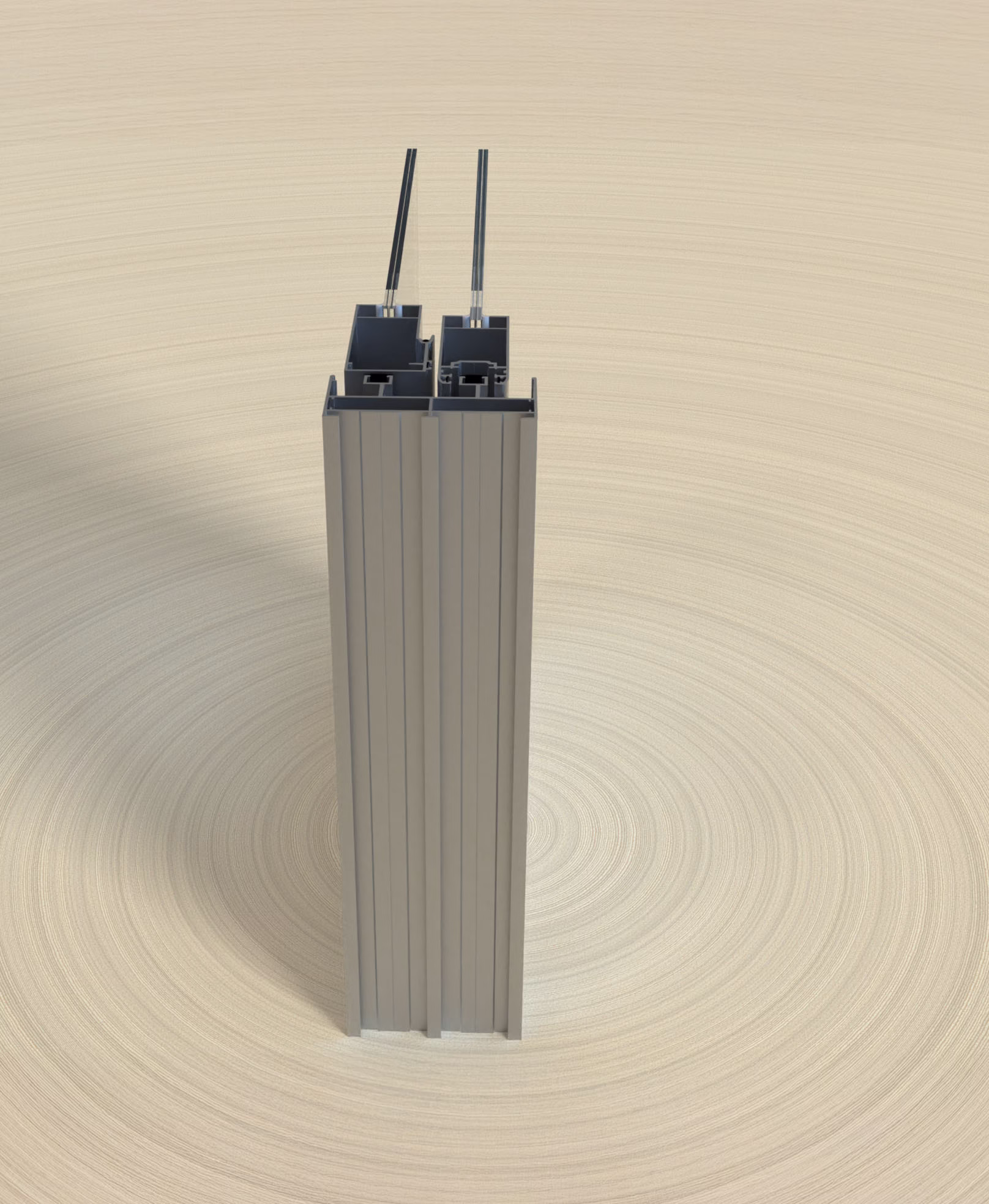

| Aluminum frame | – Non thermal-break system – The depth of aluminum outer frame: 101.6mm (4′) for 2 tracks and 148.3mm (5-18/21”) for 3 tracks, the typical depth of aluminum door & window sash: 32mm (1-1/4”), the thickness of aluminum frame: 1.5mm (1/17”) to 1.8mm (1/14”). – Aluminum Alloy 6063-T5 | ASTM B221 |
| Hardwares/ Accessories | – Single or Multi-point locking system including handle, stainless steel roller slider for loads from 60kg up to 150kg | BS EN, ASTM Standard |
| Aluminum finish | – Powder coating (non metallic or metallic) | AAMA 2603, AAMA 2604, AAMA 2605 |
| Glazing | – Monolithic glass, Laminated glass or Insulating Glass with the thickness 6mm (5/21”) to 24mm (19/20” ) | AS/NZS, ASTM, ANSI, GANA standards |
| Gasket | – EPDM or PU (Polyurethane) | ASTM Standard |
| Fasteners | – Stainless Steel A2-70 & A4-70 | EN ISO 3506 |
| Performance data: | ||
| Structural performance serviceability limit state (Class CW) | ±1440 Pa | AAMA/WDMA/CSA 101/IS2/A440-08 |
| Air infiltration (Class CW) | – Not exceed 1.5 L/m2.s at pressure ±75 Pa | AAMA/WDMA/CSA 101/IS2/A440-08 |
| Air infiltration (Class CW) | – Not exceed 1.5 L/m2.s at pressure ±75 Pa | AAMA/WDMA/CSA 101/IS2/A440-08 |
| Static water penetration (Class CW) | – No water leakage at minimum pressure +220 Pa | AAMA/WDMA/CSA 101/IS2/A440-084 |
| Strength test at ultimate limit state (Class CW) | ±2160 Pa | AAMA/WDMA/CSA 101/IS2/A440-08 |
| Sound proofing | – Minimum STC 28 (depend on the glass configuration and thickness) | ASTM E90 |
| Applications: | Hotels, the luxury/ high-end apartments, Villas, Resorts,… | |
