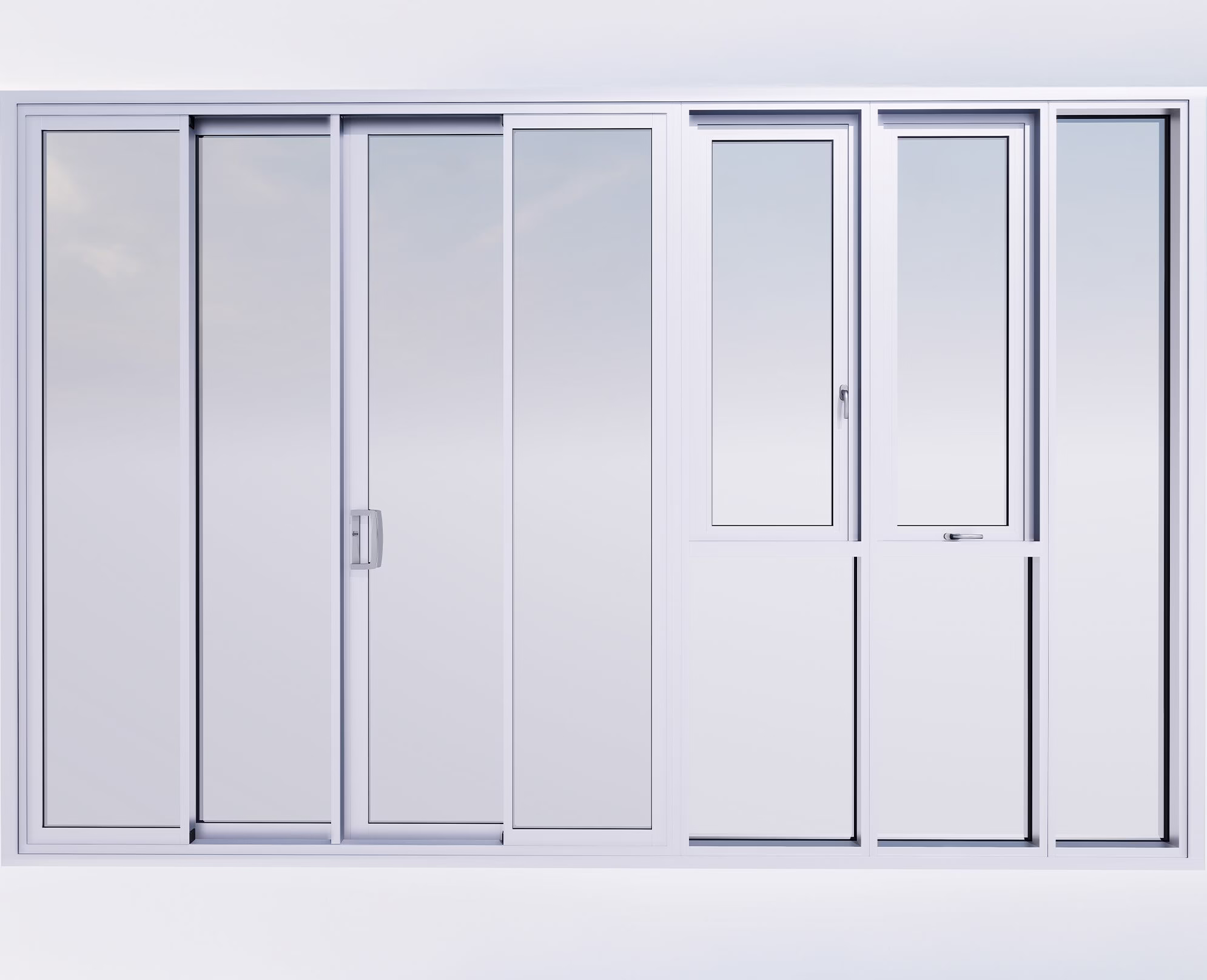

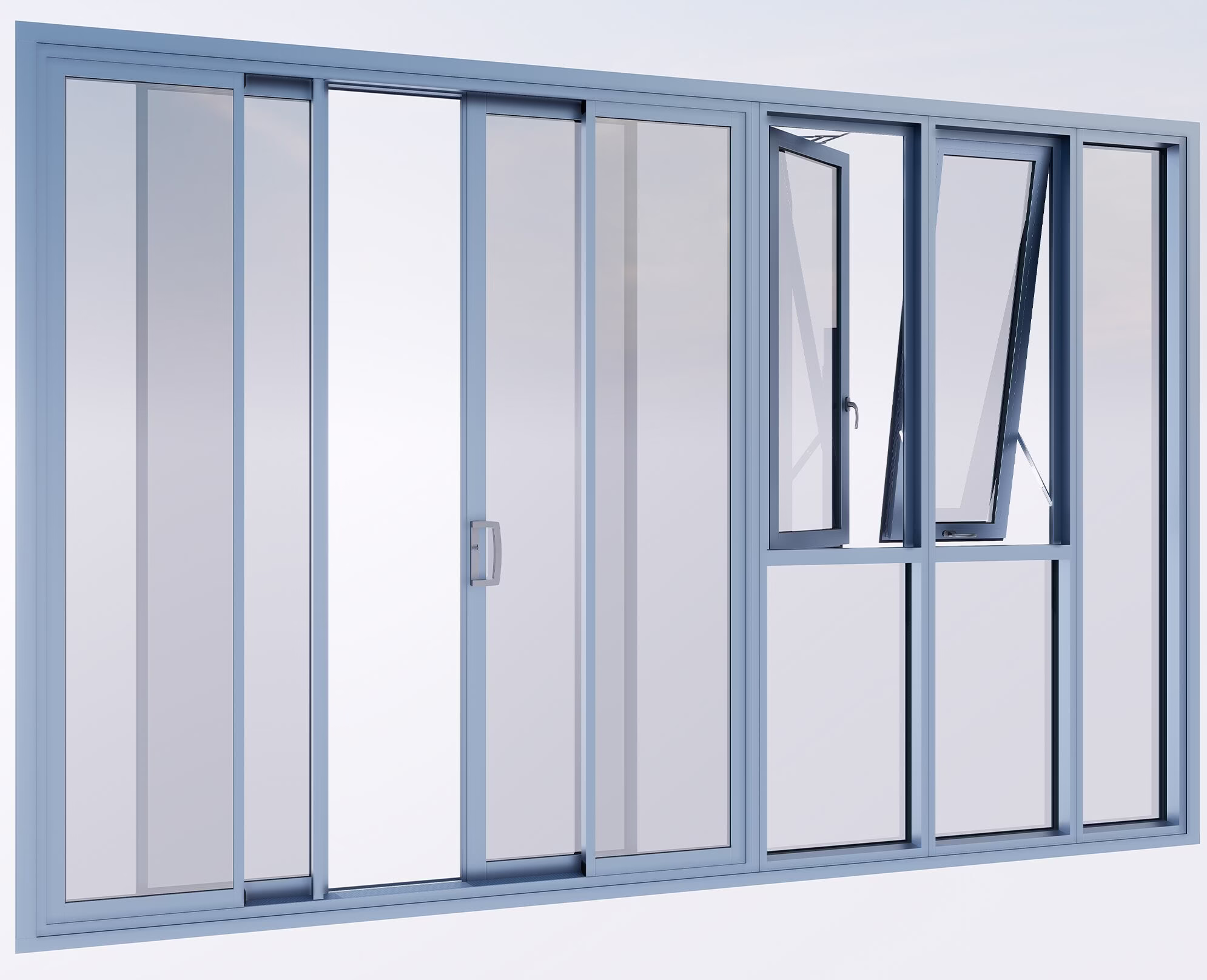

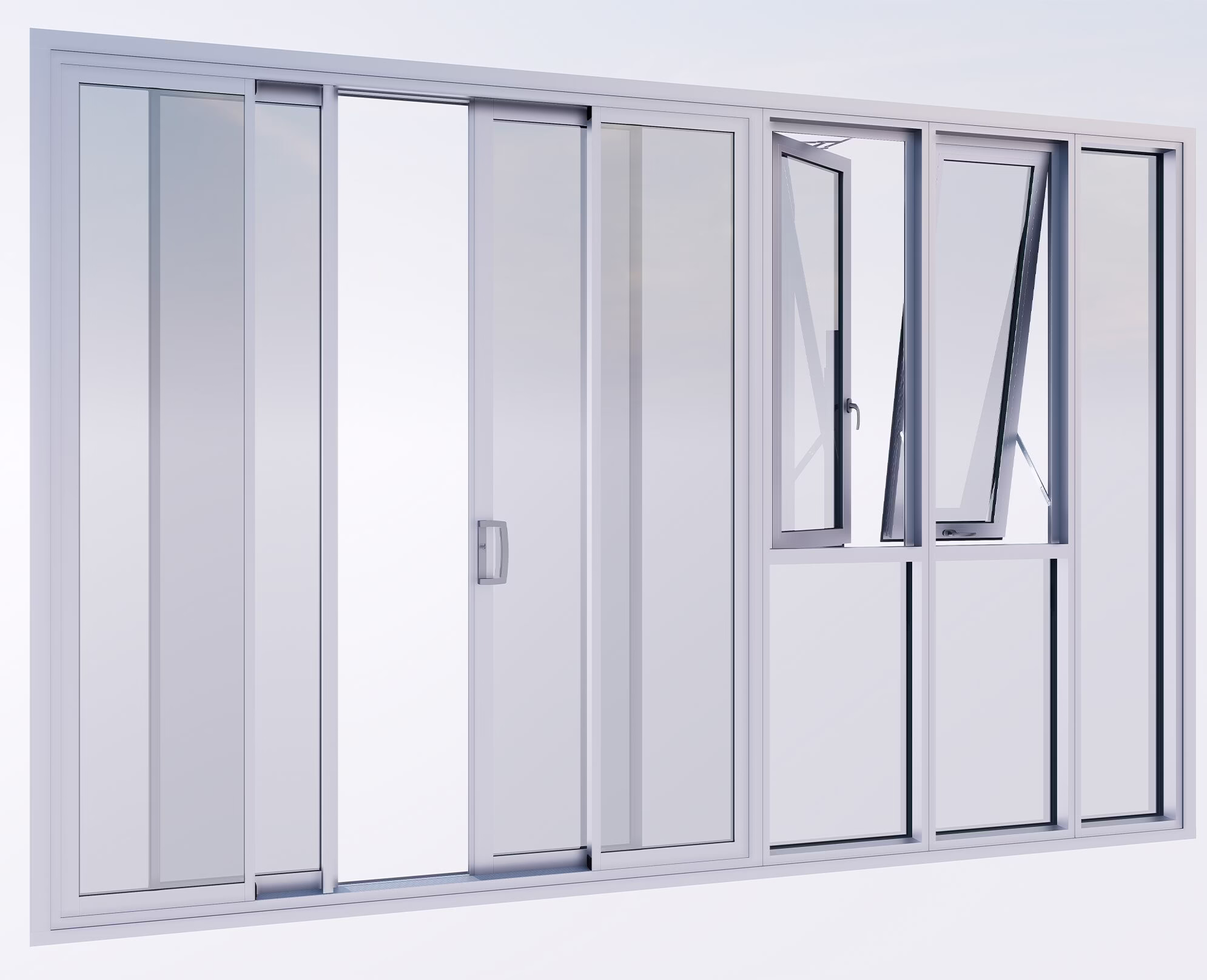

Unitized Window Wall QDP-UWW 100
| Name (product code) | Unitized Window Wall QDP-UWW 100 | |
| Materials/ Components: | ||

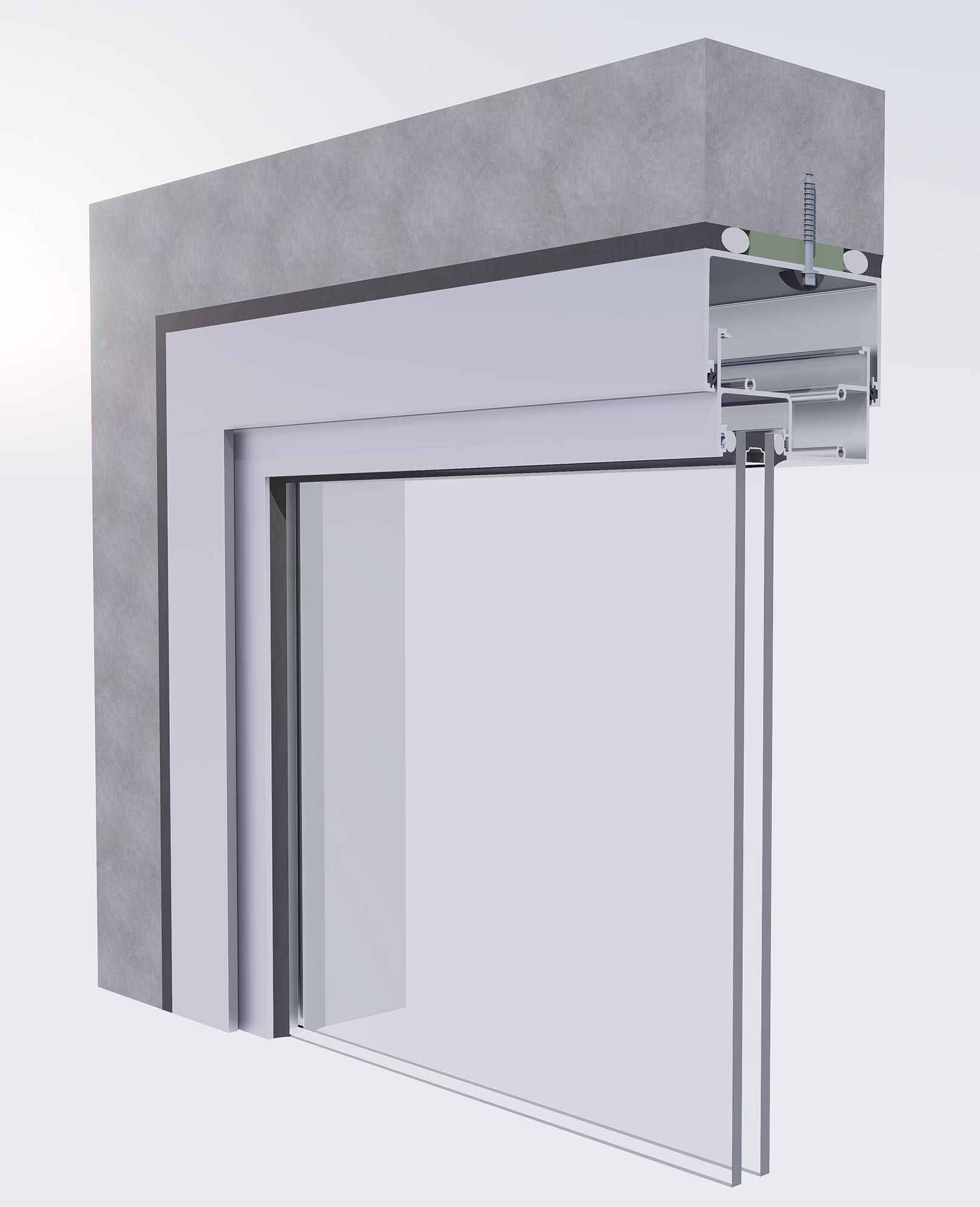

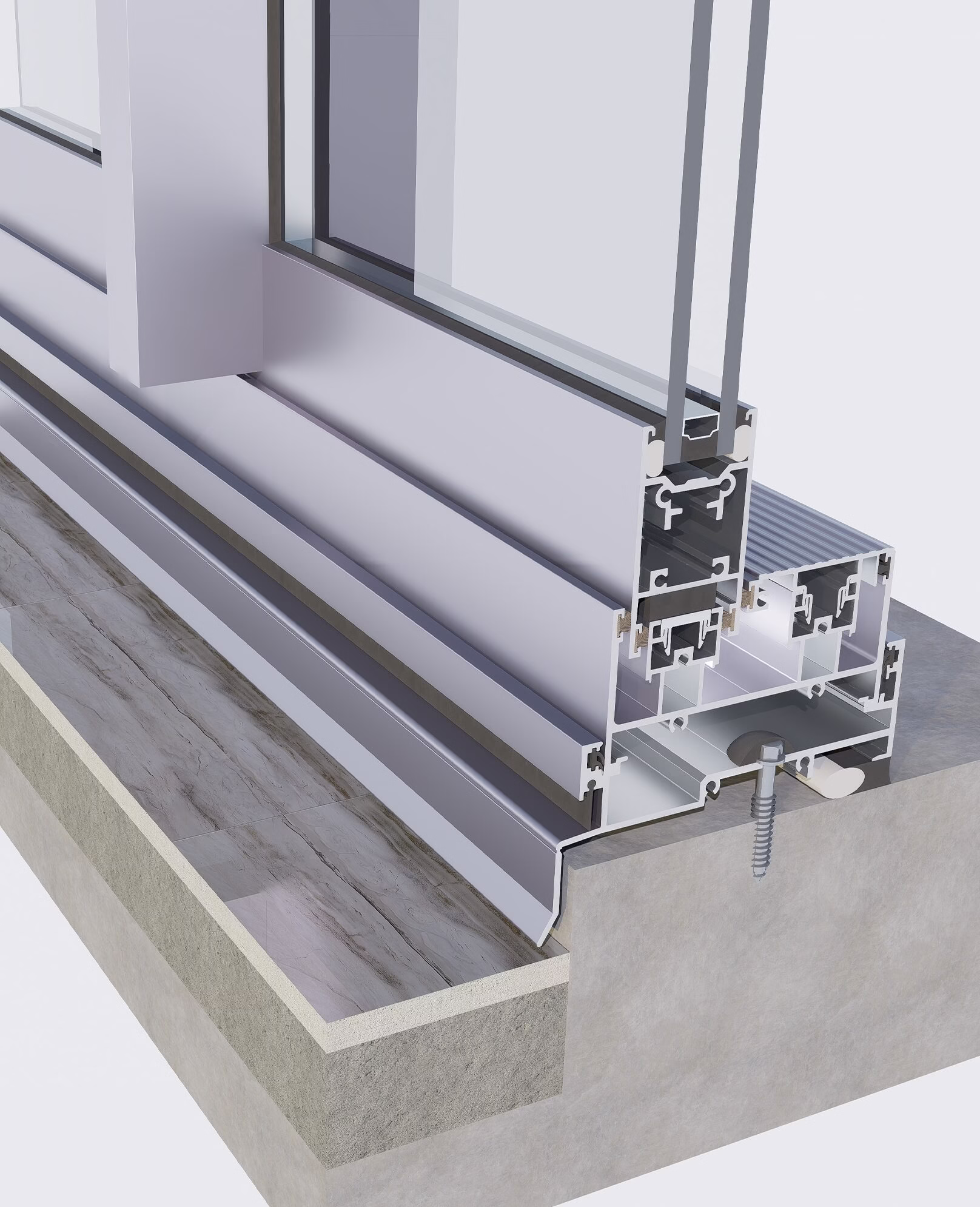

| Aluminum frame | – Non thermal-break system, 4 sides sub-frame – The depth of aluminum frame: 100mm (3-15/16”), the thickness of aluminum frame: 2mm (1/13”) to 3mm (2/17”) – Aluminum Alloy 6063-T5 & 6063-T6 | ASTM B221 hoặc JIS H4100, AS/NZS 1664.1, AS/NZS 1866 |

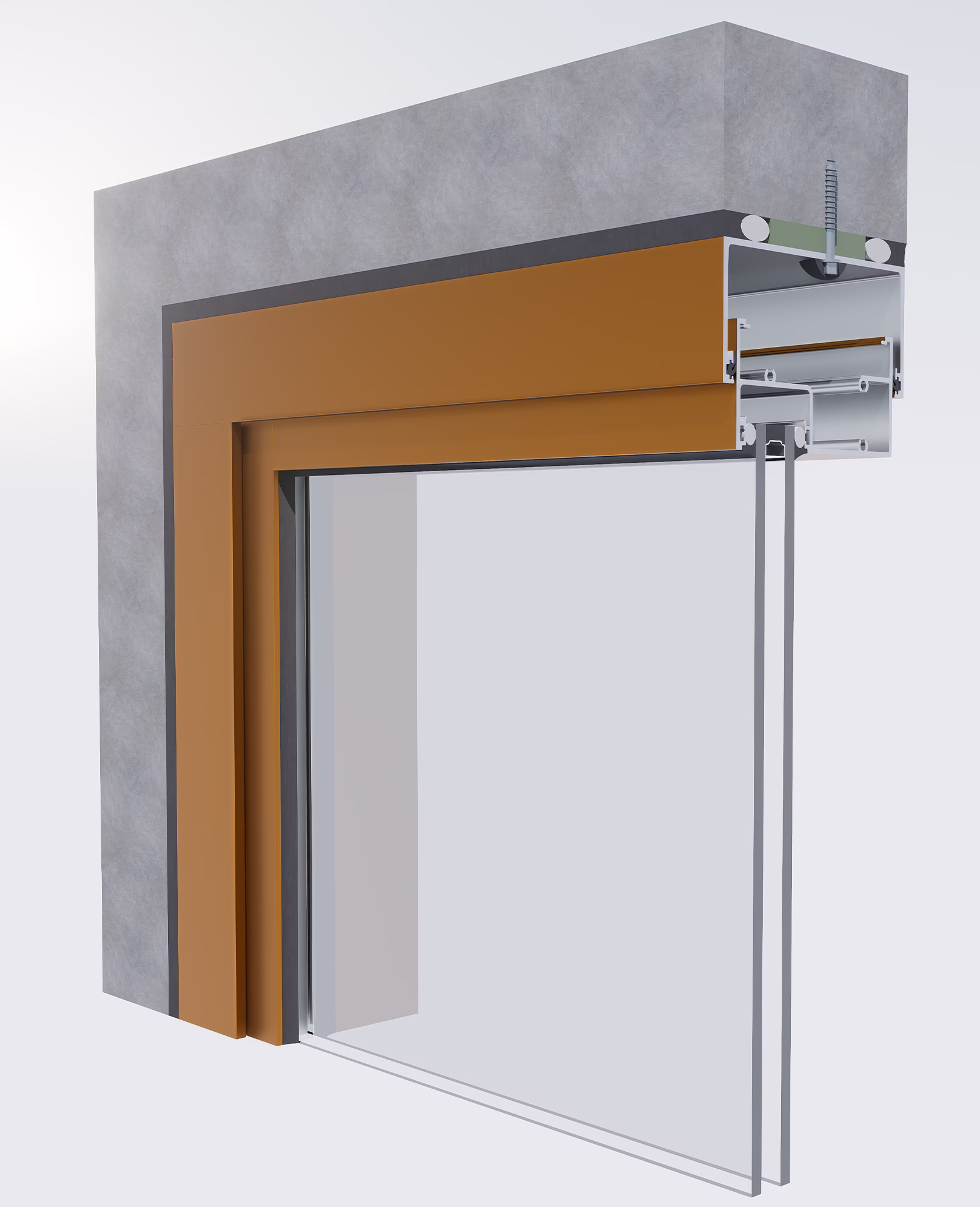

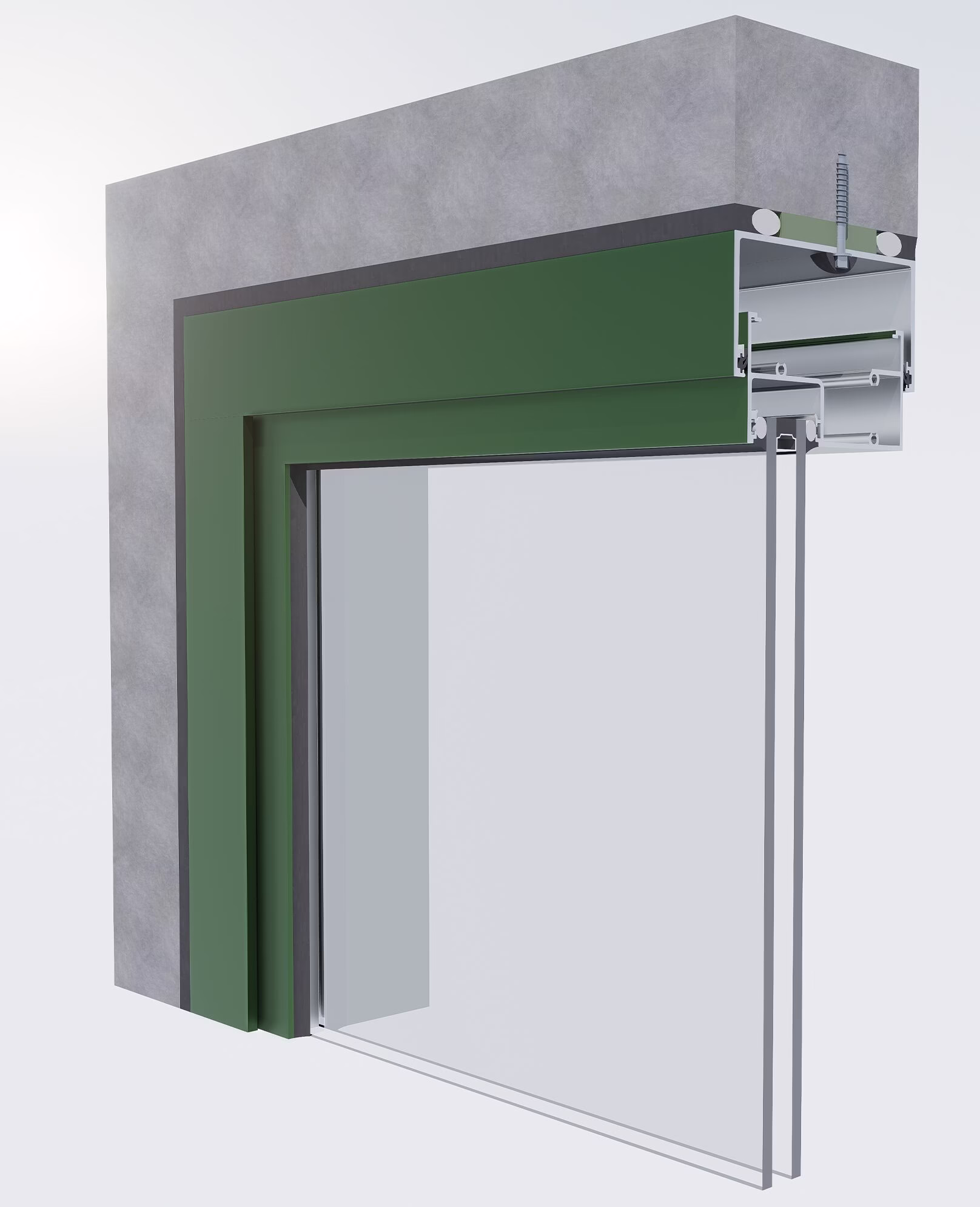

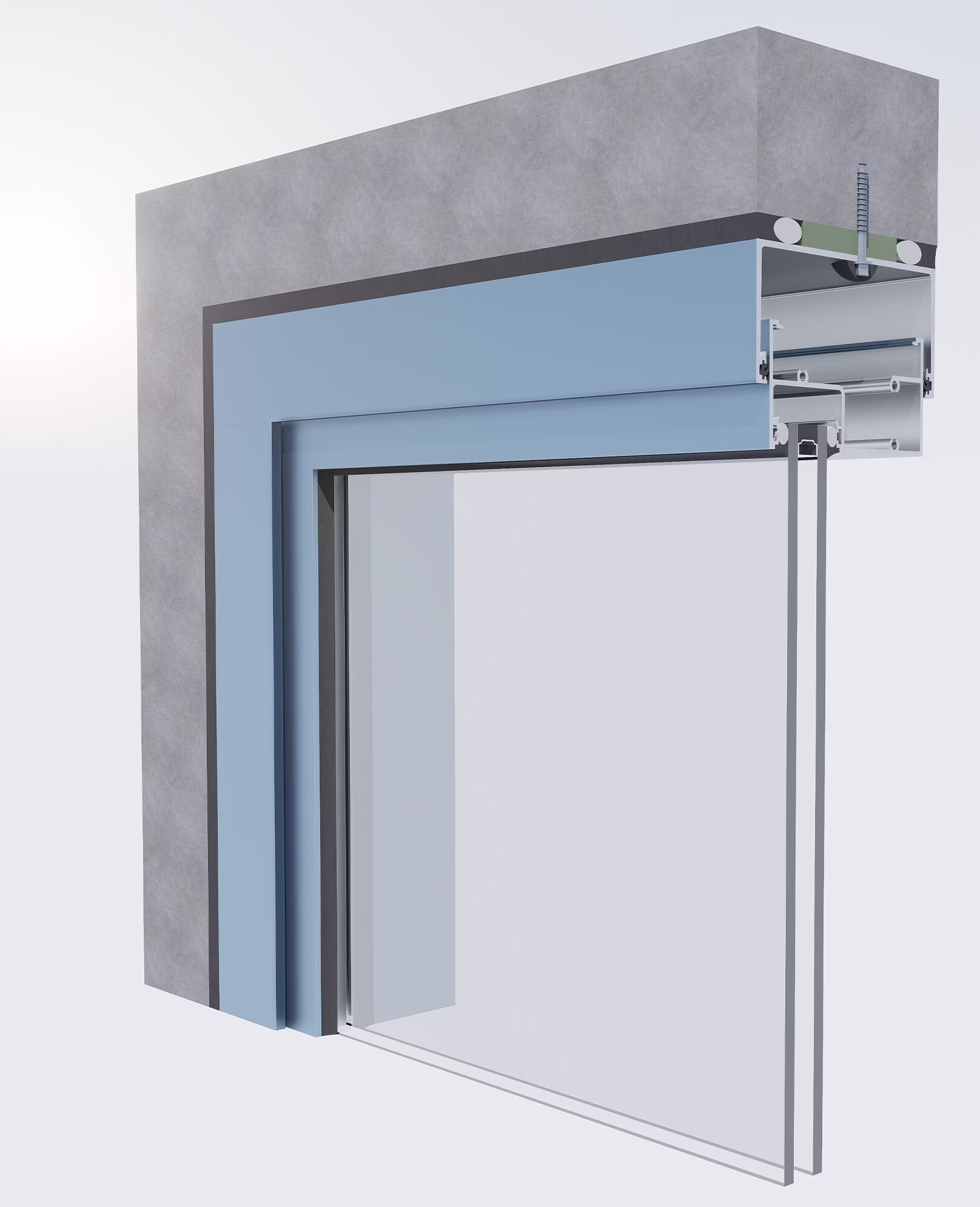

| Aluminum finish | – Powder coating (non metallic or metallic) or Anodise ED | Qualicoat Class 2 or AAMA 2604, Qualicoat Class 3 or AAMA 2605, AAMA 612 or JIS H8602 |
| Glazing | – Monolithic glass, Laminated glass or Insulating Glass with the thickness 6mm (5/21”) to 33.52mm (1-5/16”). | AS/NZS, ASTM, ANSI, GANA standards |
| Structural Glazing System Type | – Four (4) Sided Structural Glazing by glazing beads. | ASTM Standard |
| Gasket | – EPDM or Santoprene material | ASTM Standard |
| Fasteners | – Stainless Steel A2-70 & A4-70 | EN ISO 3506 |
| Performance data: | ||
| Structural performance serviceability limit state | ±1500 Pa to ±3000 Pa (depend on the size of panel) | AS/NZS 4284 |
| Air infiltration | – Not exceed 1.6 L/m2.s at pressure ±150Pa | AS/NZS 4284 |
| Static water penetration | – No water leakage at minimum pressure +450Pa | AS/NZS 4284 |
| Cyclic water penetration | – No water leakage at pressure 225Pa – 450Pa in 5 minutes – No water leakage at pressure 300Pa – 600Pa in 5 minutes – No water leakage at pressure 450Pa – 900Pa in 5 minutes | AS/NZS 4284 |
| Strength test at ultimate limit state (ULS) | Up to ±4500 Pa (depend on the size of panel) | AS/NZS 4284 |
| Seismic test | – Seismic at serviceability limit state: ±10 mm for 10 cycles – Seismic at ultimate limit state: ±20 mm for 10 cycles | AS/NZS 4284 |
| Sound proofing | – Minimum STC 30 (depend on the glass configuration and thickness) | ASTM E90 |
| Applications: | The high-rise buildings, the commercial office buildings, the luxury/ high-end apartments,… |
